Pumps
Our Pumps

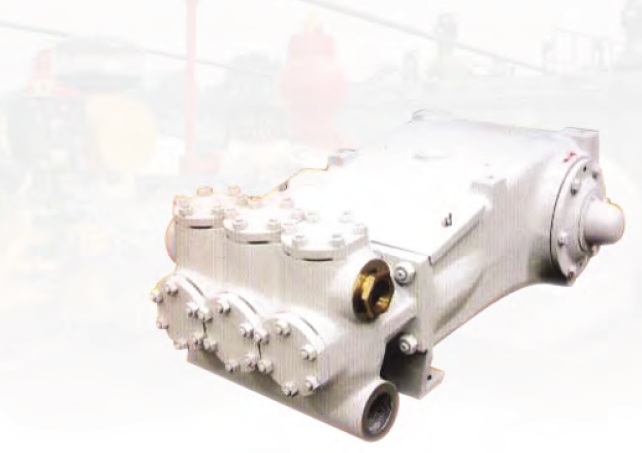

P – 59 T
PRODUCT SPECIFICATION
Stroke Length 3.5” Inch / 89 mm Min. Speed 75 RPM Max. Speed 420 RPM Suction Connection 2-1/2” NPT Discharge Connection 2.00” NPT Max. Rod Load 4,760 Lbs. Oil Capacity (Crankcase) 2.5 Gal / 9.5 Liters Weight (Pump Only) 1100 lbs / 500 kg Max Power (Pump Power) 59 BHP / 44 kW

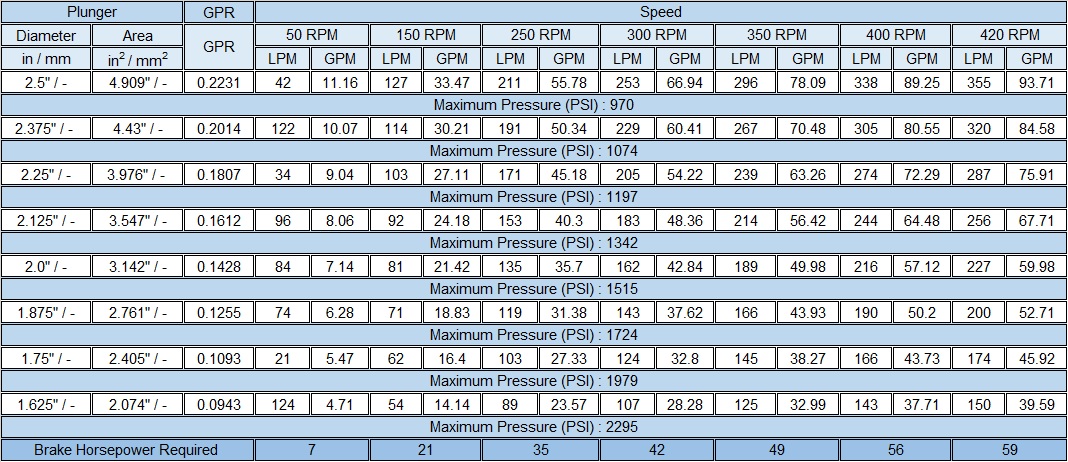

P – 59 T PERFORMANCE CHART
POWER FRAME :
| • | Forged Steel Crankshaft |
| • | Threaded Connection between Plunger Rod and Crosshead Extension |
| • | Cast Steel Power End |
| • | Left or Right Hand Shaft Extension |
FLUID END :
| • | Forged Steel / 2205 Duplex SS Fluid Valves |
| • | OEM Interchangeable (AR) Abrasion Resistant Valves |
| • | Teflon / Kevlar Braided Packin |
| • | Removable Stuffing Boxes for ease o maintenance |
OPTIONAL ACCESSORIES :
| • | Mechanical Packing Lubicator |
| • | Various Packing and Plunger Material for Special Application |
| • | Fabricated Steel Skid with Motor or Engine |
| • | Pressurized Power Frame Lubrication System |

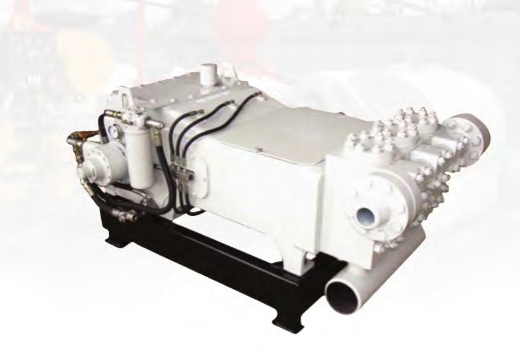

P – 165 TEE
PRODUCT SPECIFICATION
Stroke Length 5.00” Inch / 127 mm Suction Connection 6” SCH40 Pipe Discharge Connection 2-1/4” 10,000# Flange Max. Rod Load 31,000 lbs / 19,960 kg Oil Capacity (Crankcase) 12 Gal / 45.4 Liters Weight (Pump Only) 4280 lbs / 1905 kg Max Power (Pump Power) 165 BHP / 127kW
Max. Discharge Working Pressure
| Plunger Diameter | psi | bar |
|---|---|---|
| 4.00” | 3500 | 241 |
| 3.50” | 4600 | 317 |
| 3.00” | 6200 | 428 |
| 2.75” | 7400 | 510 |
| 2.50” | 9000 | 621 |
| 2.25” | 10000 | 690 |

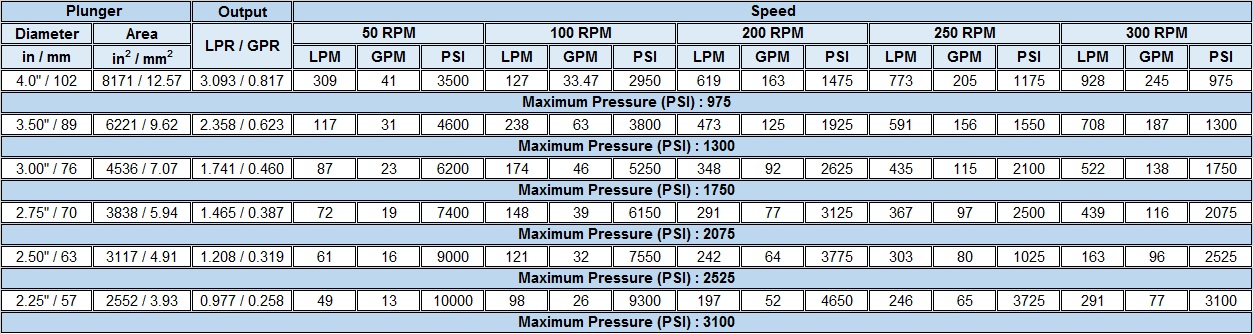

P – 165 TEE PERFORMANCE CHART
POWER FRAME :
| • | Forged Steel Crankshaft |
| • | Threaded Connection between Plunger Rod and Crosshead Extension |
| • | Cast Steel Power End |
| • | Left or Right Hand Shaft Extension |
FLUID END :
| • | Carbon Steel Fluid End |
| • | Adjustable or Non-Adjustable Type Packing |
| • | 6” Steel Fabricated Suction Manifold |
| • | Removable Stuffing Box with Threade Gland Nuts |
| • | Hardened Abrasion Resistant Valves |
| • | Colmonoy Plungers or Pistons/Liners Available |
OPTIONAL ACCESSORIES :
| • | Mechanical Packing Lubicator |
| • | Fabricated Steel Skid with Motor or Engine |
| • | Relief Valve |
| • | Piston Liner Wash System (Piston Pumps) |
| • | High Temperature Packing Agreement |
| • | Ceramic Plungers |

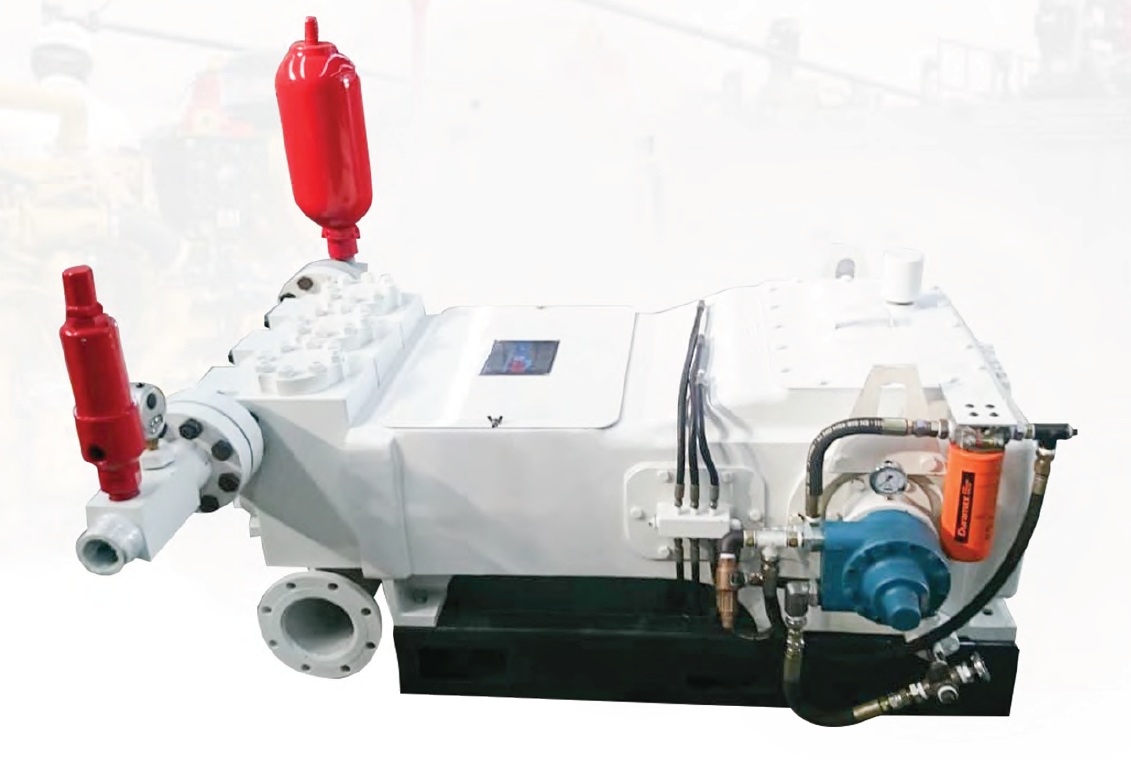

P – 200 J
PRODUCT SPECIFICATION
Stroke Length 5.00” Inch / 127 mm Minimum Speed 100 rpm Maximum Speed 300 rpm Suction Connection 6” Discharge Connection 3” Max. Rod Load 31,000 lbs / 19,960 kg Oil Capacity (Crankcase) 21 Gal / 79.5 Liters Weight (Pump Only) 7800 lbs / 3401 kg Max Power (Pump Power) 200 BHP / 150 kW
Max. Discharge Working Pressure
| Plunger Diameter | psi | bar |
|---|---|---|
| 4.00” | 3700 | 255 |
| 3.75” | 4296 | 298 |
| 3.50” | 4938 | 340 |
| 3.25” | 5500 | 379 |
| 3.00” | 5500 | 379 |

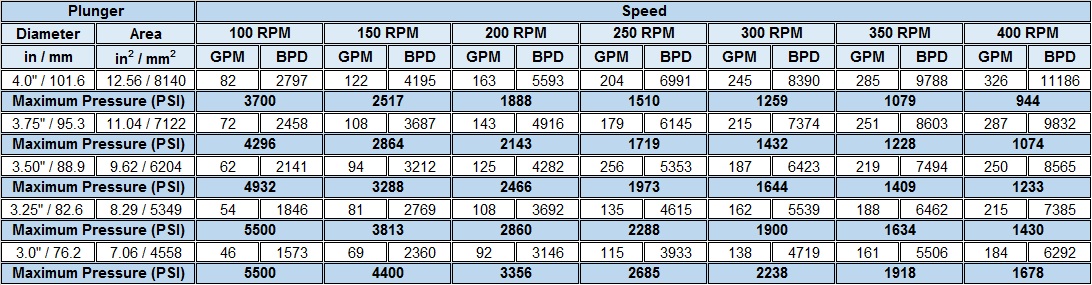

P – 200 J PERFORMANCE CHART
POWER FRAME :
| • | Forged Steel Crankshaft |
| • | Cast Iron 4130 |
| • | Threaded Connection between Plunger Rod and Crosshead |
| • | Extension Left or Right Hand Shaft Extension |
| • | Interchangeable Housing Crosshead |
FLUID END :
| • | Carbon Steel Fluid End |
| • | Aluminium Bronze |
| • | 2205 Duplex SS (Acid Resistant) |
| • | OEM Interchangeable (AR) Abrasion Resistant Valve |
| • | Removable Stuffing Box for ease o Maintenance |
| • | Colmonoy Plunger |
OPTIONAL ACCESSORIES :
| • | Mechanical Packing Lubricator |
| • | Fabricated Steel Skid with Motor or Engine |
| • | Relief Valve and Pulsation Dampener |
| • | Spring Non Adjustable Packing |
| • | Pressurized Power Frame Lubrication System |
| • | Various Packing and Plunger Material for Special Application |
P – 300 Q
PRODUCT SPECIFICATION
Stroke Length 6.88” Inch / 175 mm Minimum Speed 75 rpm Maximum Speed 300 rpm Suction Connection 6” Discharge Connection 3” Max. Rod Load 31,000 lbs Oil Capacity (Crankcase) 21 Gal / 79.5 Liters Weight (Pump Only) 7800 lbs / 3401 kg Max Power (Pump Power) 300 BHP / 224 kW
Max. Discharge Working Pressure
| Plunger Diameter | psi | bar |
|---|---|---|
| 3.25” | 3743 | 258 |
| 3.00” | 4391 | 303 |
| 2.75” | 5225 | 360 |

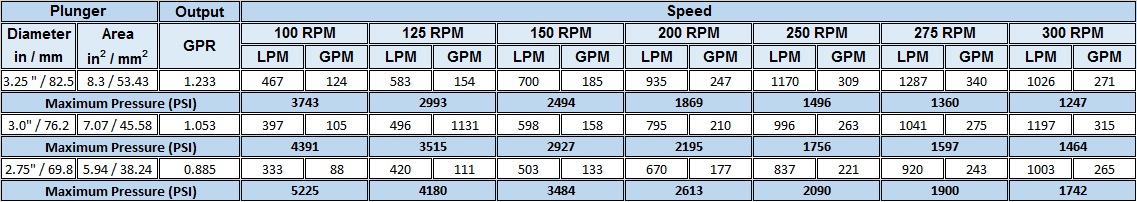

P – 300 Q PERFORMANCE CHART
POWER FRAME :
| • | Forged Steel Crankshaft |
| • | Fabricated Power Frame |
| • | Threaded Connection between Plunger Rod and Crosshead |
| • | Extension Left or Right Hand Shaft Extension |
| • | Interchangeable Housing Crosshead OPTIONAL |
FLUID END :
| • | Carbon Steel Fluid End |
| • | 6” Steel Fabricated Suction Manifold |
| • | OEM Interchangeable (AR) Abrasion Resistant Valve |
| • | Removable Stuffing Box for ease o Maintenance |
| • | Colmonoy Plunger |
OPTIONAL ACCESSORIES :
| • | Mechanical Packing Lubricator |
| • | Fabricated Steel Skid with Motor or Engine |
| • | Relief Valve and Pulsation Dampener |
| • | Spring Non Adjustable Packing |
| • | Pressurized Power Frame Lubrication System |
| • | Various Packing and Plunger Material for Special Application |

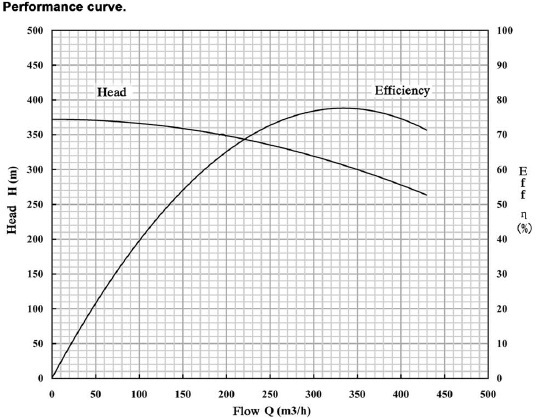

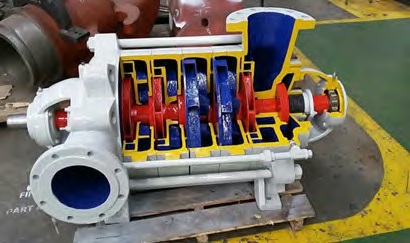

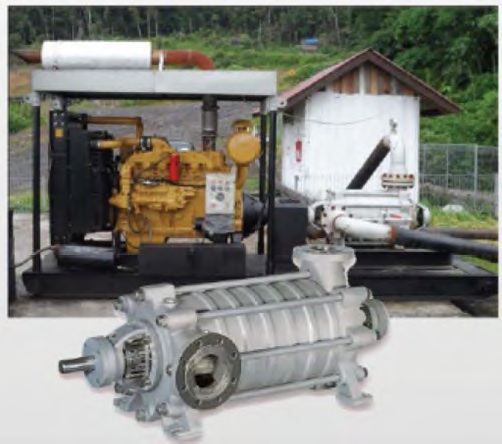

MULTISTAGE PUMP
PRODUCT SPECIFICATION
| Plunger Application | Transfer Pump for water formation, crude oil and brine water |
|---|---|
| Total head | 345 m |
| Rated pressure | 500 psi |
| Rated capacity | 50 gpm |
| Pump speed | 1800 rpm |
| Suction diameter | 200 mm / Flange |
| Discharge diameter | 200 mm / Flange |
| Shaft power | 315 kW |
| Weight | 1050 Kg |
